The MySQL User's conference will be held in less than a month from now!!!

This year there is quite a good number of sessions on adding your own functions and procedures, such as:

I will be doing the 3 hour tutorial on writing user-defined functions, and I am currently adding the last few final touches to my slides.

My tutorial will be very much a hands-on experience. The ambition is to allow people with some programming skills in either C/C++, PHP or Java to leave the room with a bunch of UDFs they created themselves during one of labs. With that and the supporting materials (slides and a handout with detailed instructions) the attendees will be able to write UDFs themselves, and have the knowledge that allows them to make a sensible decision when they have to choose between stored SQL functions, UDFs or raw expressions built of built-in functions.

Allow me to tell you a bit about UDFs - you might decide you want to take my tutorial ;)

User-defined functions

User-defined functions or UDFs are often confused with Stored SQL functions but unrightly so. Other than the fact that stored functions and user-defined functions can be created by the user (as opposed to hard-wired, built-in functions), they have little in common. If you want to know exactly what the difference is and what the strengths and weaknesses are of either feature, my tutorial is for you.

Features

For now I don't want unveil too much but I think that it might be good to point out a number of key advantages of using UDF's over stored SQL functions:

Flexible argumentlists - UDFs allow a flexible number of dynamically typed arguments, and it is possible to identify arguments by name (rather than position).

The ability to leverage the functionality from external libraries - UDFs can be linked to existing libraries in order to expose their functionality to SQL statements

Aggregate functions - UDFs can compute a value for a collection of rows just like the built-in functions COUNT and GROUP_CONCAT

Neither of these features is available to stored SQL functions, and a generic workaround is simply impossible or far from trivial. So - UDFs might be for you if you need one of these things.

Performance

Another reason to use UDFs might be performance. UDFs are much, much better than stored SQL functions when it comes to computation. To prove this fact, I'd like to share a number of benchmarks I did.

For the benchmarks I use a stored procedure like this:


create procedure sp_<SOME-NAME>_benchmark(p_num int unsigned)
begin
    declare v_num int unsigned default 0;
    declare v_return <SOME-DATA-TYPE>;
    declare v_begin int unsigned default unix_timestamp();
    while v_num < p_num do
        set v_return := <SOME-EXPRESSION>;
        set v_num := v_num + 1;
    end while;
    call sp_store_function_benchmark(
        '<SOME-NAME>'
    ,   p_num
    ,   unix_timestamp() - v_begin
    );
end;

As you can see, the procedure repeats the evaluation of <SOME-EXPRESSION>, depending on the specified number of iterations passed to the parameter p_num. Depending on the benchmark, an expression is plugged in place of <SOME-EXPRESSION>. The variable v_return is used to capture the evaluation result, and a suitable data type is used in place of <SOME-DATA-TYPE>. Before running the loop, the time is recorded. After the loop, the elapsed time, the number of repetitions and the benchmark name are stored in a table for later analysis. This allows me to test a series of increasing repetitions of the same expression.

I also use a sp_noop_benchmark() procedure that is identical to the one described above, except that it omits the assignment of the expresion. So, it lacks this line:


        set v_return := <SOME-EXPRESSION>;

This allows us to isolate the time spent on evaluating the expression and doing the assignment. I also use another control measurement that uses an assignment like this:


        set v_return := <SOME-LITERAL-VALUE>;

This allows us to estimate the time spent on the value assignment, which can be used to get a bit closer to the actual time spent only on expression evaluation alone. (Of course, this assumes that the time spent on the assignment alone is comparable for expressions, function calls and literals).

All these measurements were made by comparing single, complete calls many times. All tests were done on Ubuntu Gutsy Gibbon using MySQL 5.1.23. Compilation of UDFs was performed using gcc version 4.1.3 20070929 (prerelease) (Ubuntu 4.1.2-16ubuntu2). No optimizations were employed.

Stored functions and UDFs

To compare UDFs and Stored functions, I first used simple "Hello World" expressions that all evaluate to a VARCHAR(14). This was measured:

String literal sp_string_benchmark. The expression was:
```
v_return := 'Hello, String!';
```

Stored SQL function sp_ssf_benchmark. The expresion was:

v_return := ssf_hello_world();

The ssf_hello_world() itself was:


create function ssf_hello_world()
returns varchar(14)
return 'Hello, SSFs!!!';

User defined function sp_udf_benchmark. The expression was:

v_return := udf_hello_world();

The UDF itself was:


my_bool udf_hello_world_init(
  UDF_INIT *initid, UDF_ARGS *args,
  char *message
){
  return 0;
}
char *udf_hello_world(
  UDF_INIT *initid, UDF_ARGS *args
, char* result, unsigned long* length
, char *is_null, char *error
){
  *length = 14;
  return "Hello, UDFs!!!";
}

Here are the raw results:


+----------+------+--------+-----+-----+
| repeated | noop | string | UDF | SSF |
+----------+------+--------+-----+-----+
|        0 |    0 |      0 |   0 |   0 |
|   500000 |    3 |      4 |   6 |   8 |
|  1000000 |    7 |      9 |  10 |  16 |
|  1500000 |   10 |     13 |  16 |  25 |
|  2000000 |   13 |     17 |  21 |  33 |
|  2500000 |   16 |     22 |  25 |  42 |
|  3000000 |   19 |     27 |  31 |  50 |
|  3500000 |   23 |     31 |  36 |  58 |
|  4000000 |   26 |     36 |  41 |  67 |
|  4500000 |   30 |     40 |  45 |  75 |
|  5000000 |   33 |     44 |  51 |  83 |
|  5500000 |   36 |     49 |  55 |  90 |
|  6000000 |   39 |     53 |  61 |  99 |
|  6500000 |   42 |     57 |  66 | 107 |
|  7000000 |   45 |     62 |  71 | 115 |
|  7500000 |   49 |     66 |  76 | 123 |
|  8000000 |   52 |     71 |  81 | 131 |
|  8500000 |   56 |     75 |  86 | 140 |
|  9000000 |   58 |     80 |  90 | 147 |
|  9500000 |   62 |     83 |  96 | 156 |
| 10000000 |   64 |     88 | 101 | 164 |
+----------+------+--------+-----+-----+

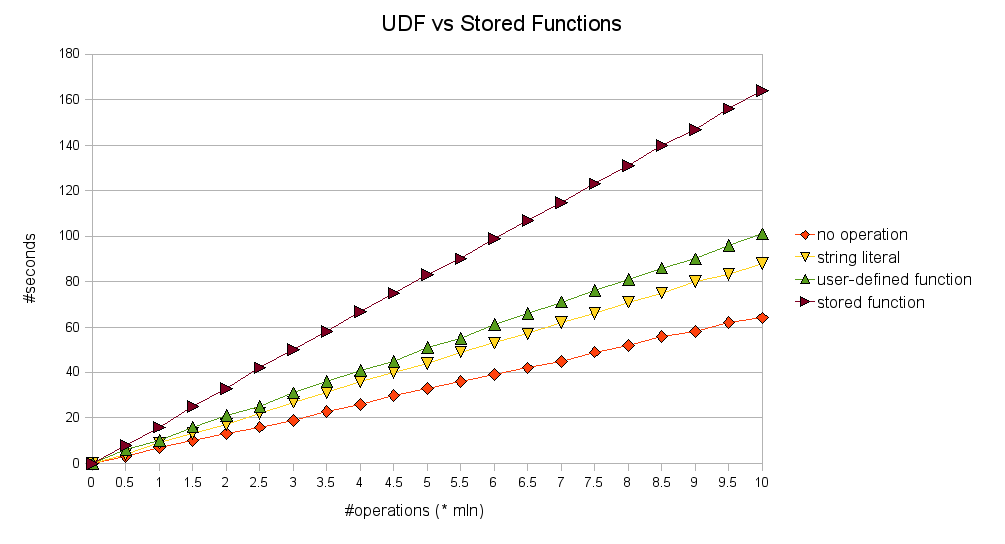

And here is a graph:

At a glance we see that doing nothing is the fastest, followed by the assignment of a literal string. After that, comes the UDF and the stored SQL function is by far the slowest. Another thing that is immediately apparent is that the execution time increases proportionally as the number of repetitions is increased. This means that we can essentially forget the entire series and focus on the measurements with the highest number of repetitions (which is presumably more accurate than the earlier measurements).

But exactly how much faster is the UDF as compared to the SQL function? Well, it depends on how you look at it. If we just divide the raw execution time of the stored function by that of the UDF, we see that the ratio is:


164/101 = 1.60

This would tempt us into thinking that UDF's are about 60% faster.

However, when we calculate it like this, we are also counting the overhead of the benchmark procedures themselves. We get a better result if we focus on only the expression assignments. We can express the performance in terms of the time required to execute the no-operation benchmark. So:


noop / udf = 64 / 101 = .63

and


noop / ssf = 64 / 164 = .39

This correction indicates that the UDF performs at 63% of the no-operation benchmark, whereas the stored SQL function performs at 39% of the no-operation benchmark. We could say that relative to the no-operation benchmark, UDFs are 24% faster as compared to SQL functions

Now we could stretch it a bit more and try to isolate only the time spent on evaluating the functions. To do that, we'd have to assume that "assignment" costs the same, no matter if we are assigning from a stored SQL function, user-defined function or string literal. If we do that, we get this figure:


literal / udf = 88 / 101 = .87

and


literal / ssf = 88 / 164 = .54

This correction indicates that the UDF performs at 87% of the string-literal benchmark, whereas the stored SQL function performs at 54% of the string-literal benchmark. This would indicate that relative to the string literal assignment, UDFs are 33% faster than SQL functions.

Now, I can imagine that a lot of people will have some reservations against this method of correcting the measurements. Personally I think the method is valid, although the result itself is not that useful. I mean, in real life, the fact is that we will be assigning the value of the function, and from that perspective it doesn't help us much to know how fast it would have been if we didn't perform an assignment. Another reservation that we may have is that this benchmark still doesn't tell us much more than the relative differences in overhead. Basically, both the UDF and the stored function are empty - so this benchmark can tell us nothing about performance in a more realistic case where the function is actually doing some work.

Addition

In an attempt to measure at least some basic processing I decided to benchmark addition too. I took a INTEGER as data type and did the following benchmarks:

Integer literal: sp_num_benchmark with the expression:
```
v_return := 3;
```

Addition operator: sp_opr_benchmark with the expression:
```
v_return := 1+2;
```

UDF: sp_udf_benchmark with the expression:

v_return := UDF_ADD(1,2);

The code for the UDF is

my_bool udf_add_init(
  UDF_INIT *initid
, UDF_ARGS *args
, char *message
){
  if(args->arg_count!=2){
    strcpy(message, "Require two arguments");
    return 1;
  } else {
    args->arg_type[0]= INT_RESULT;
    args->arg_type[1]= INT_RESULT;
  }
  initid->maybe_null= 1;
  return 0;
}

long long udf_add(
  UDF_INIT *initid
, UDF_ARGS *args
, char *is_null
, char *error
){
  if((args->args[0]==NULL)||(args->args[1]==NULL)){
    *is_null= 1;
    return 0;
  } else {
    return (*((long long*)args->args[0])) + (*((long long*)args->args[1]));
  }
}

Stored SQL function: sp_ssf_benchmark with the expression:
```
v_return := SSF_ADD(1,2);
```
The code for the function is
```
create function ssf_add(l int, r int)
returns int
return l+r;
```

Here is the raw data:


+--------------+------+-----+-----+-----+-----+
| repeat_count | noop | num | opr | udf | ssf |
+--------------+----- +-----+-----+-----+-----+
|            0 |    0 |   0 |   0 |   0 |   0 |
|       500000 |    3 |   5 |   5 |   6 |   9 |
|      1000000 |    7 |   9 |   9 |  11 |  18 |
|      1500000 |   10 |  14 |  13 |  16 |  27 |
|      2000000 |   13 |  19 |  18 |  21 |  35 |
|      2500000 |   17 |  23 |  22 |  26 |  47 |
|      3000000 |   20 |  27 |  27 |  33 |  56 |
|      3500000 |   23 |  33 |  33 |  38 |  62 |
|      4000000 |   27 |  38 |  36 |  43 |  74 |
|      4500000 |   30 |  42 |  42 |  50 |  83 |
|      5000000 |   34 |  46 |  47 |  54 |  91 |
|      5500000 |   36 |  51 |  60 |  68 | 108 |
|      6000000 |   42 |  56 |  59 |  67 | 115 |
|      6500000 |   45 |  60 |  62 |  71 | 123 |
|      7000000 |   47 |  65 |  69 |  78 | 132 |
|      7500000 |   50 |  67 |  71 |  84 | 143 |
|      8000000 |   54 |  72 |  78 |  89 | 149 |
|      8000000 |   54 |  73 |  78 |  89 | 149 |
|      8500000 |   59 |  78 |  79 |  92 | 157 |
|      9000000 |   60 |  85 |  85 |  99 | 168 |
|      9500000 |   65 |  89 |  92 | 104 | 178 |
|     10000000 |   67 |  91 |  95 | 111 | 189 |
+--------------+------+-----+-----+-----+-----+

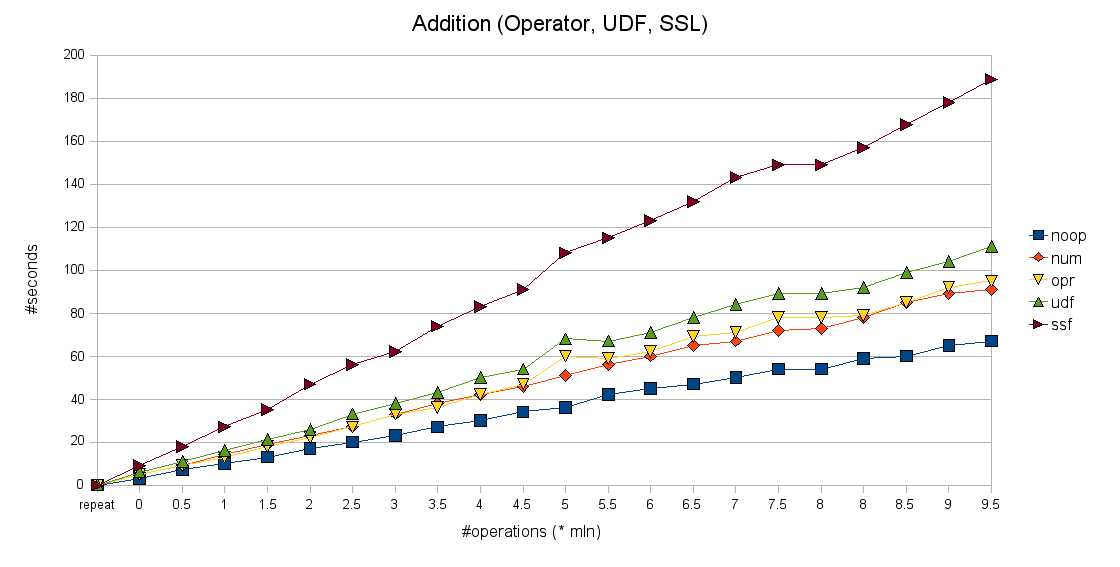

And here is the graph of the results:

We can immediately see that the result is quite similar to what we saw in the previous measurements. Let's look at the performance relative to assigning a literal integer:


    int / opr = 91 / 95 = 0.96

and


    int / udf = 91 / 111 = 0.82

and


    int / ssf = 91 / 189 = 0.48

So, A direct addition operator is less than 5% slower than a literal assignment. The UDF 18% slower than the literal assignment and 14% slower than the addition operator. The stored SQL function is quite a good deal slower: 48% slower than the direct addition operator and 34% slower than the UDF. If we want to compare only UDFs vs stored SQL functions, we should compare relative to the addition operator, which gives a minutely different result:


    opr / udf = 95 / 111 = 0.83

and


    opr / ssf = 95 / 189 = 0.5

Built-in functions and UDFs

While I was busy doing benchmarks, I also figured that it'd be nice to figure out how UDFs and built-in functions compare performance-wise. To make things slightly more realistic than simply returning a value, I chose to implement my own version of CONCAT().

Because CONCAT can take on a number of arguments I decided to measure the effect of a varying number of arguments too. I ended up choosing VARCHAR(10) for the data type, and tested these different benchmarks:

Built-in function sp_bif<1..10>_benchmark - where <1..10> is a number from 1 to 10, and where the expression was:v_return := CONCAT(0[,1[,...,9]); That is, 10 different CONCAT measurements, from CONCAT(0) to CONCAT(0,1,2,3,4,5,6,7,8,9)


    UDF sp_udf<1..10>_benchmark - where <1..10> is a number from 1 to 10, and where the expression was:v_return := UDF_CONCAT(0[,1[,...,9]);
That is, 10 different measurements of my UDF implementation of concat, from UDF_CONCAT(0) to UDF_CONCAT(0,1,2,3,4,5,6,7,8,9).The code for my UDF_CONCAT is:
my_bool udf_concat_init(
  UDF_INIT *initid, UDF_ARGS *args
, char *message
){
  int i;
  size_t bytes = 0;
  for(i=0;iarg_count; i++){
    args->arg_type[i] = STRING_RESULT;
    bytes += args->lengths[i];
  }
  if(!(initid->ptr= malloc(bytes))){
    strcpy(message, "Error allocating memory.");
    return 1;
  } else {
    return 0;
  }
}

char *udf_concat(
  UDF_INIT *initid, UDF_ARGS *args
, char* result, unsigned long* length
, char *is_null, char *error
){
  int i;
  char *buff = initid->ptr;
  *length = 0;
  for(i=0;iarg_count; i++){
    if(args->args[i]==NULL){
      *is_null = 1;
      break;
    } else {
      memcpy(buff + *length, args->args[i], args->lengths[i]);
      *length += args->lengths[i];
    }
  }
  return buff;
}

void udf_concat_deinit(
  UDF_INIT *initid
){
  if(initid->ptr){
    free(initid->ptr);
  }
}

I also measured the same string literal assignment and the noop benchmarks as control measurements. I won't give the raw results here - send me an email or post a comment if you'd like to have them. I do have a graph of the result here:
Note that for this graph I already subtracted the no-operation benchmark. This was done to make it easier to examine the data sets of the UDFs and Built-in functions. The graph does include the literal string benchmark, which is the orange line nearest to the X axis.

Now, what do we see here apart from the control benchmark? Basically, we see two bundles of series. The bundle nearest to the X axis corresponds with the built-in CONCAT() benchmarks. The bundle above that corresponds to the UDF benchmarks. So, this tells us that on every occasion, the built-in CONCAT() was faster than the UDF.

We can also see that there is a relatively small but measurable effect for passing more arguments. The calls with fewer arguments are consistently faster than the calls with more arguments within both the group of built-in and UDF calls.

Frankly, I didn't expect to see this. I had imagined that the effect of passing more arguments would be larger, so I expected to see pairs of UDF/Built-in function calls having the same number of parameters. Clearly, I was wrong.

So how much faster are UDFs? Well, if we look at the raw ratios of execution times for the largest number of repetitions, we see:

UDF_CONCAT(0) / CONCAT(0) = 91 / 107 = .85

Interestingly, if we compare that for the calls with 10 arguments we see the same ratio:

UDF_CONCAT(0,1,2,3,4,5,6,7,8,9) / CONCAT(0,1,2,3,4,5,6,7,8,9) = 91 / 107 = .85

So, UDF_CONCAT() would seem to be 15% slower than the built-in CONCAT(). Interestingly, there seems to be no difference between the call with the larger number of arguments, indicating that the performance impact of passing another argument is about the same for UDFs as it is for built-in functions.

What happens if we express the execution time relative to the no-operation benchmark? Well, we get:
noop / UDF_CONCAT(0)                     = 64 / 107 = .60
noop / CONCAT(0)                         = 64 /  91 = .70

and

noop / UDF_CONCAT(0,1,2,3,4,5,6,7,8,9)   = 64 / 122 = .52
noop / CONCAT(0,1,2,3,4,5,6,7,8,9)       = 64 / 104 = .62

Here we see that relative to the no-operation benchmark, the UDF is 10% slower than the built-in function. We could say that 10% is quite a lot, but it is more than half as large as the difference between UDFs and stored SQL functions.

We see something interesting if we look at the execution time relative to the execution time spent on the string literal assignment:
string / UDF_CONCAT(0)                   = 88 / 107 = .82
string / CONCAT(0)                       = 88 /  91 = .87

and

string / UDF_CONCAT(0,1,2,3,4,5,6,7,8,9) = 88 / 122 = .72
string / CONCAT(0,1,2,3,4,5,6,7,8,9)     = 88 / 104 = .85

Here, the difference between the single argument calls is only 5%, wereas the difference becomes more 12% for the calls with 10 arguments. This is interesting because in the comparison with the no-operation benchmark we did not detect a difference caused by the the amount of arguments.

My current suspicion is that we are actually witnessing the effect of the length of the left hand expression in the assignment operation. Our string literal is a VARCHAR(14), and it should probably be a CHAR(1) for the comparison to the single argument calls and a CHAR(10) for the comparison with the 10 argument calls.
Conclusion

The UDFs I tested are

    somewhere around and between 25% to 33% faster than stored SQL functions

    somewhere around and between  5% to 20% slower than built-in functions


Another interesting finding is that argument passing seems to have about the same impact on UDFs as it has on built-in functions. A single argument seems to cost about 1% of the function performance in both cases. For stored SQL functions no such data is currently available.
Discussion

Currently, all functions call are single complete function calls. That means that for UDFs, the initialization function and the row-level function are both called exactly once per UDF instance. When using UDFs in multi-row SQL statements, the initialization function will be called only once per occurence of the UDF, and the row-level function will be called for each row. For functions where the initialization function is relatively expensive, this means that the performance observed in these benchmarks is probably poorer that it can be. A new set of benchmarks should be done to measure the performance of functions in multi-row SQL statements.
Finally

So, are you interested? If you are, go and register for the conference. You can contact me and get a 20% discount! Of course I'd love to see you attend my tutorial too!

See you at the conference!
